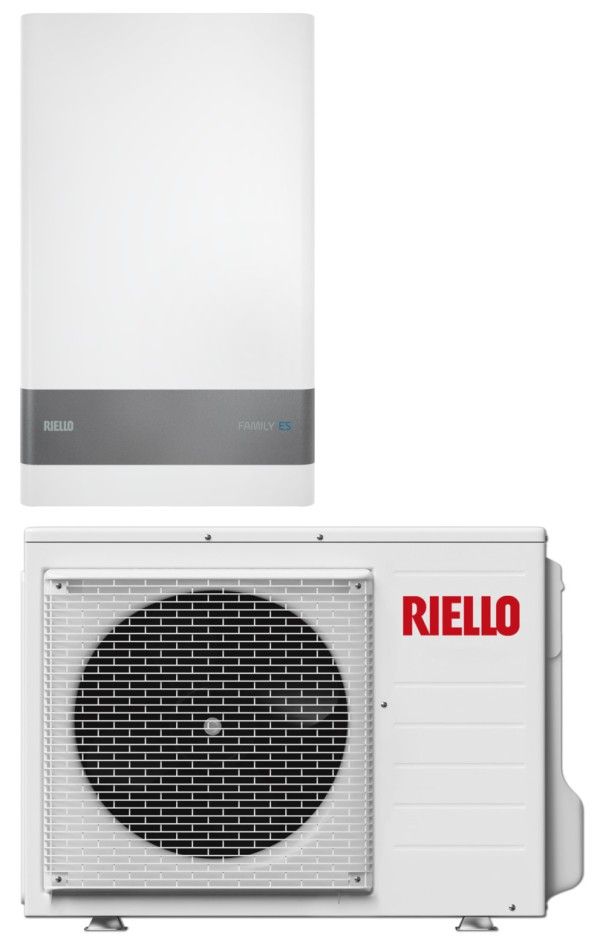

FAMILY ES

Family ES is a split type heat pump system with wall-hung indoor unit for heating, cooling and domestic water production. The system consists of an outdoor unit in R410A connected through refrigerant pipes to the indoor wall-hung unit.

The outdoor unit, compact and quiet, includes a Twin Rotary DC inverter compressor, electronic expansion valve, fans with brushless motor and finned pack coil optimized for heat pump operation even with outdoor air temperature of -20°C.

The indoor unit houses the main components of the hydronic system, high surface plate exchanger, high efficiency electronic circulator, collector for installation of an additional heating element available as ACCESSORY.

The indoor unit is extremely compact with all hydraulic and refrigerant connections from below.

Remove the front panel to access all internal components, the electronic service panel and the electrical terminal block.

The system control panel is simple and intuitive, with large backlit colour display. It is supplied complete with bracket to be positioned directly inside the rooms. It can be used as room control and allows integration with BAG3 Hybrid distribution systems.

As an alternative to the additional heating element, the Family ES control can also manage an auxiliary heat source, such as a boiler, to be operated as integration or as backup.

Split type heat pump with wall-hung indoor unit for heating, cooling and DHW production
Wide range of powers available, from 5 to 25kW
Intelligent management of multiple energy sources: heat pump, boiler and solar thermal
Control panel that can be positioned in the room also with room sensor function (V ErP class)
